| Author |  Topic  | |
andydeans3
V4 Guru
United Kingdom
2233 Posts |  Posted - 03 Sep 2023 : 15:14:13
| Guys
Since I've got the front calipers off the car at the moment, it seems sensible to replace the discs. They're not in terrible condition, but not perfect either.
Thought I had nothing better to do than get my trusty 3 leg puller, (That I've used several times on the old, blue LHD 96 that I have), and whip the disc assemblies off.
Well, erm, no. I've got the puller as tight as I can, and neither side is budging.
I've tried a bit of tapping with a hammer around the centre, where the spline is, to no avail.
Any ideas chaps? Get violent with it, (Ie bigger. longer spanner with a cheater bar on it), or perhaps a little judicious heat with a heat gun? (Not an open flame, though I could do that as well.)....
Andy
1978 LHD SAAB 96
1978 MGB Roadster
2008 LHD "Classic" Renault Twingo
1991 Nissan Figaro |
|
SAAB96L
V4 Mad
United Kingdom
749 Posts | Posted - 03 Sep 2023 : 16:32:13
| Hello Andy,
I've had similar situations when dealing with rear discs on Daimlers and Jaguars, whereby the hub needs to come off to access the discs - serious pressure to dislodge.
I'm not a great fan of smacking cast metal with a hammer. More often than not doing the puller up as tight as you can with the aid of a breaker bar and then leaving [sometimes overnight] often does the job. Using a heat gun is fine, BUT if using an open flame you need to be wary about too much concentrated heat, rather a gentle warming spread over the whole area; you can do this with the puller still in place.
Quite often it does come down to sheer brute force with an extension bar and as I said, being left overnight with the puller on max pressure can do the job.
Regards.
Richard.
|  |
|
christophe
V4 Fanatic
France
295 Posts | Posted - 03 Sep 2023 : 20:58:31
| | 50/50 mix ATF/acétone usually makes wonders in such cases. And à little time, of course. | |
|
Woody
V4 Guru
United Kingdom
2878 Posts | Posted - 03 Sep 2023 : 21:26:38

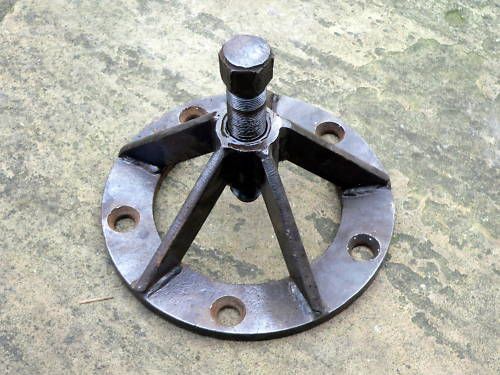

| My type of hub puller or the later Saab puller should be ample to get the disc and hub off.
My one has the option to slide a stout tube to lock rotation of the assembly whilst tightening the puller bolt.
I guess the same could be done with the later type which I last used in 1976 in my Saab dealer workshops
http://www.saab-v4.co.uk/speedball/topic.asp?TOPIC_ID=2906&SearchTerms=hub,puller
 |
Edited by - Woody on 03 Sep 2023 21:33:31 | |
|
andydeans3
V4 Guru
United Kingdom
2233 Posts | Posted - 03 Sep 2023 : 21:53:08
| Thanks for your input guys.
I got "Big Bertha" out, my 2metre long, 3/4" drive breaker bar on the 3 leg puller..........Took a couple hours of sustained pressure, but they gave in, in the end ha ha ha
1978 LHD SAAB 96
1978 MGB Roadster
2008 LHD "Classic" Renault Twingo
1991 Nissan Figaro | |
|
SAAB96L
V4 Mad
United Kingdom
749 Posts | Posted - 04 Sep 2023 : 13:21:11
| Well done Andy.
Regards.
Richard. | |
|
| | Topic | |
Removing front disc assemblies
